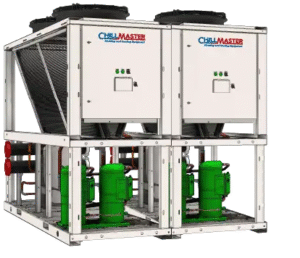

Engineered Air Solutions Is Your Local Representative for Chillmaster These brands exemplify high end quality, efficiency and flexibility.

Units are available Air Cooled, Water Cooled, Air Cooled Condenserless and Air Cooled with split barrel.

We also can do Heat Recovery, Air Source Heat Pump and Water source Heat Pump Units!

Did you know we can produce 34F water WITHOUT Glycol?

Applications include Data Centers, Industrial Process, Commercial Spaces, and Institutions.

Fundamentally Modular:

Chillmaster offers a true modular platform that allows chiller plants to have exceptional reliability, efficiency and small footprints by utilizing independent chillers that work together, “individually”. What does that mean? Each Module has its own independent refrigeration circuit, frame and electrical components. The units are designed to run in a common header to act as one. The big advantage here is that if a circuit or even module is taken off line, whether unforeseen or scheduled, the plant will continue to run. If N+1 or redundancy is needed, it does not get truer than this. Additional advantages are:

  • All sections can be rigged through a 36” door
  • Save first cost by only adding 1 module
  • Routine maintenance and repairs can be made without losing the whole plant

Chillmaster exclusives are:

  • Remote monitoring without using the building wifi/lan by utilizing its own cellular card!
  • Option for coaxial heat exchangers for better reliability than brazed plate heat exchangers (Coax don’t clogg!)
  • All units are fully run tested at the conditions intended. If you order a unit delivering 40F with 15 delta t, that is how it is run tested. A full report will shared and witness tests are encouraged!
  • For reversing cycle chillers can produce 140F water with outdoor ambient as low as 5F
  • Variable speed compressors can be on the whole chiller or just 1 circuit for precise load and efficiency!
  • Acoustical Panels to keep chiller sound to a minimum
  • Available pump packages
  • R454b or low temperature 513A

Modules range from 10-80 tons each.

Available Chillers:

Water Cooled:

  • 10-80 ton
  • 34x78x72
  • 24x66x64 (“NY Slim” Option with dual 15 HP compressors)
  • Up to 10 banks (800 tons, min load 10 ton)

Air Cooled Chillers

  • 20-30 ton modules
  • 40x96x89

Heat Recovery

  • Allow Simultaneous Cooling and Heating; Heat rejected by the cooling load recovered on the heat side
  • “6 pipe” cooling, heating, extra heat for rejection

Water Source Heat Pump

  • Chiller in Cooling or Heating Or some banks dedicated to Heating, others dedicated to cooling
  • Perfect for domestic hot-water

Air Source Heat Pump

  • Operates -15 to 120F +
  • Simultaneous heating and cooling
